Characteristics are described with a degree of granularity intended for die identification more so than for die classification. A characteristic may not span the entire die progression. Thus, not all characteristics may be present in any one coin.

1889-P VAM-7B2 Die Sequence 4A I2R6 AW092920

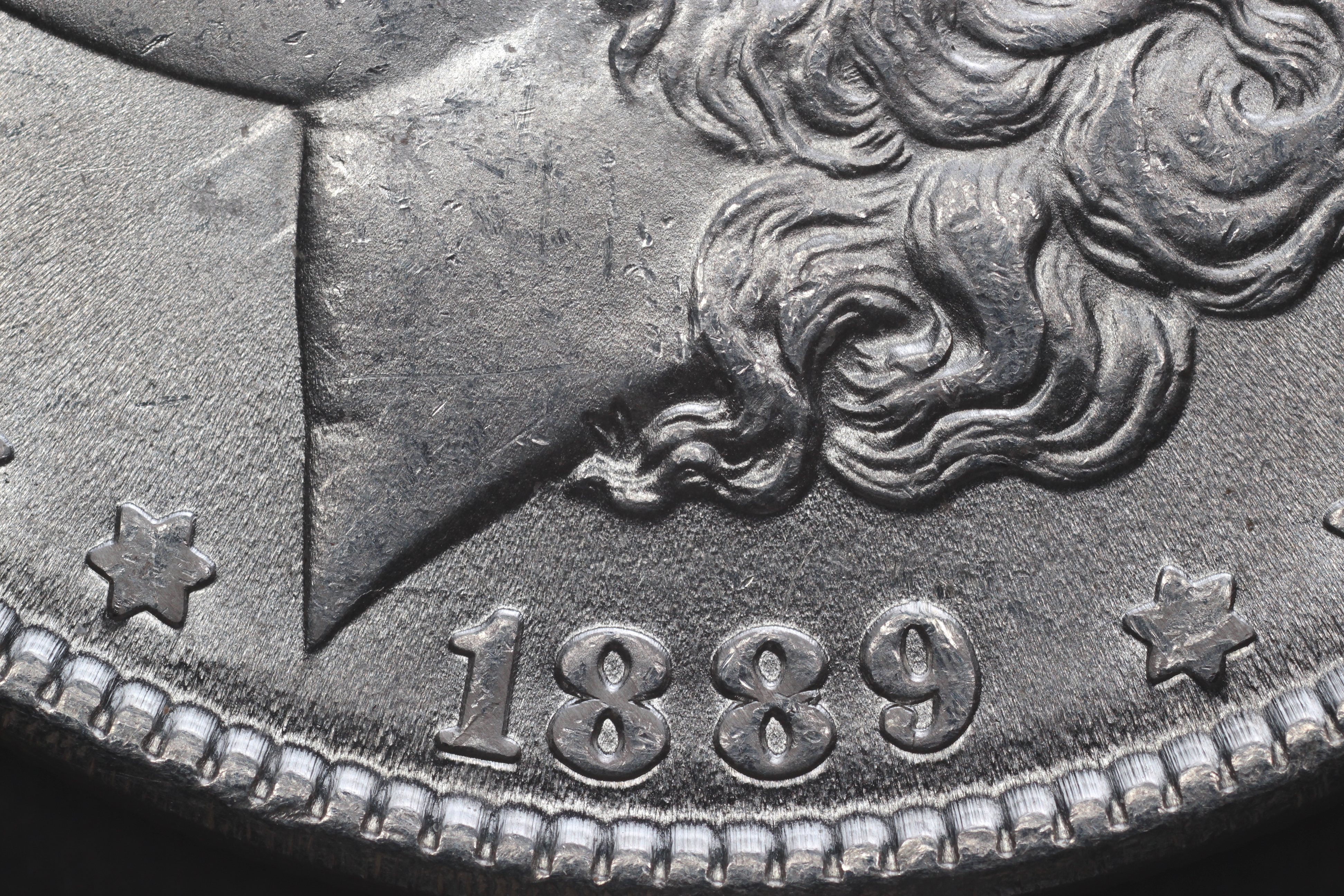

  • Date set in Normal right position. Slanted with high 9. Die break at the right side of second 8 between the loops.

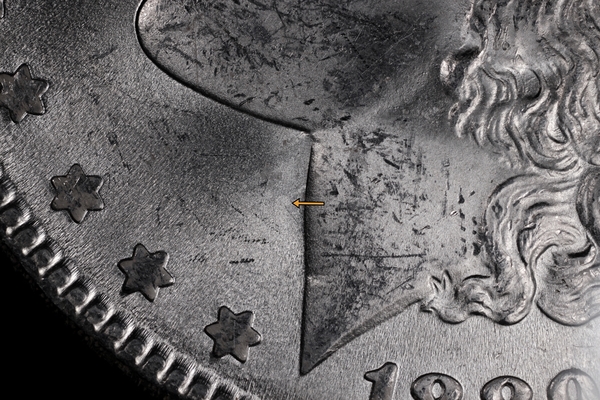

  • Weak crack from the left side of the 1 into the bust point.

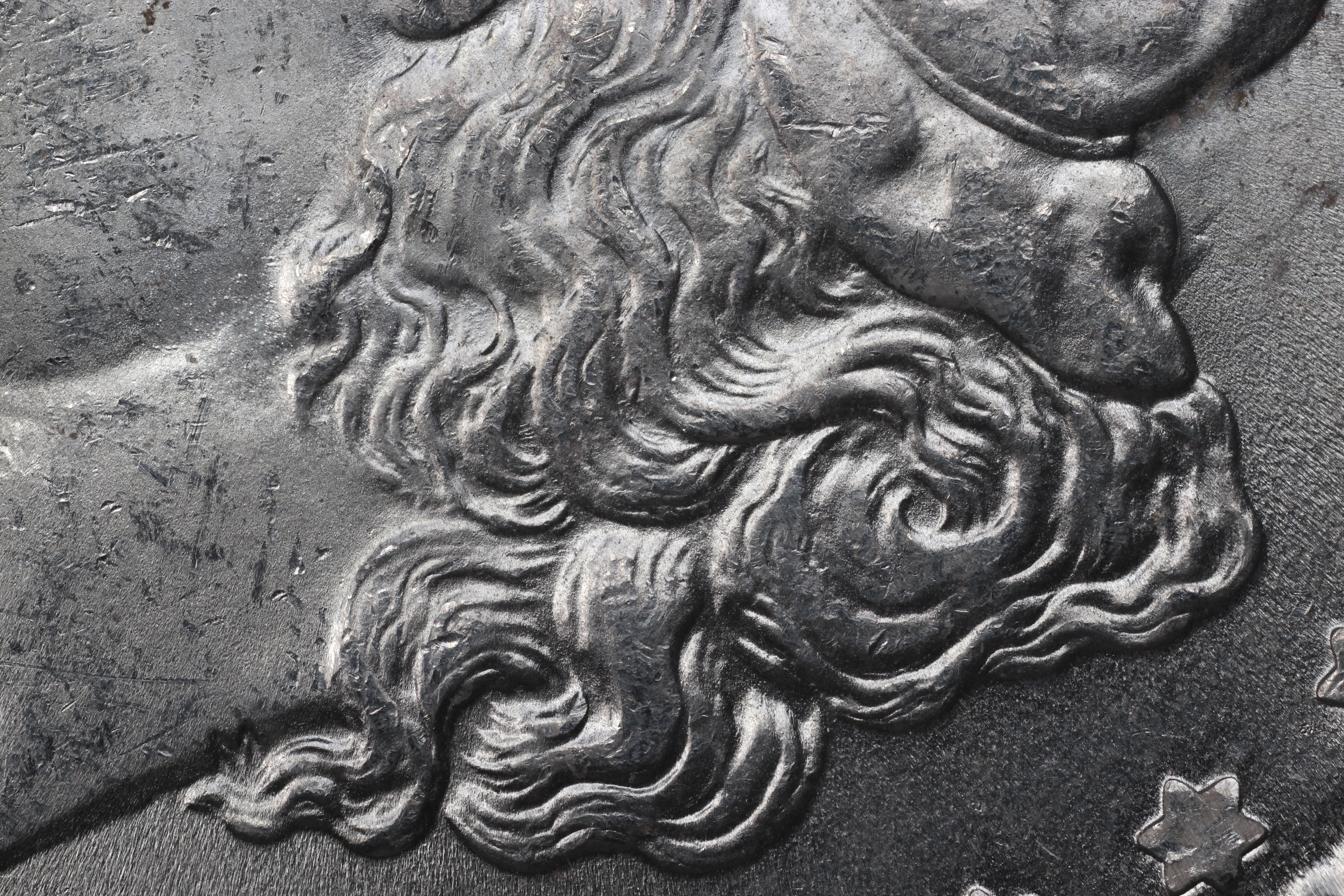

  • Distinct polish lines below the D-void in the hair and at the bottom of the cap above the small bear claw hair swirl.

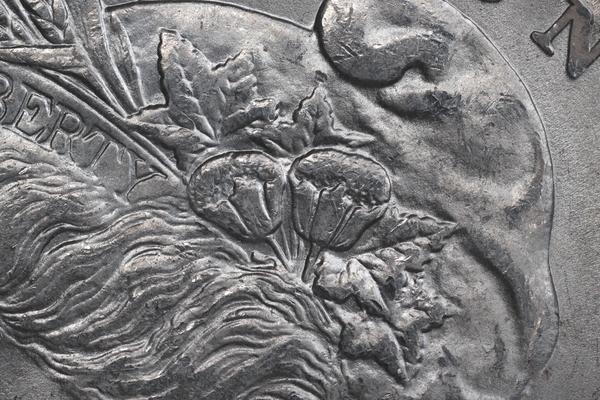

  • Weak right wreath double clash marks at the cap vee.

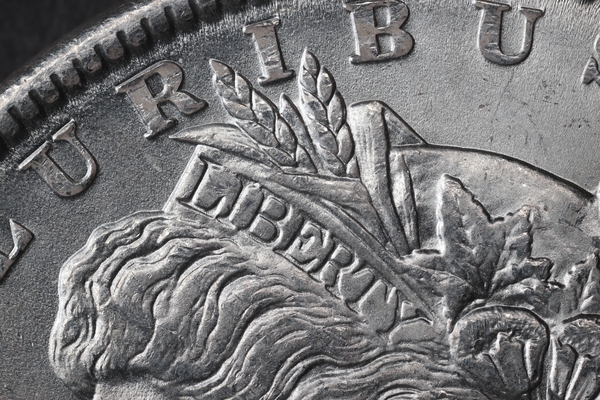

  • Die marker- Single raised dot in the right leg of the R of LIBERTY.
  • Die Marker- Die polishing lines below cap bottom edge.
  • Ear slightly doubled at the rear of the ear opening.
  • Left wreath clash marks at Liberty's lips and chin.

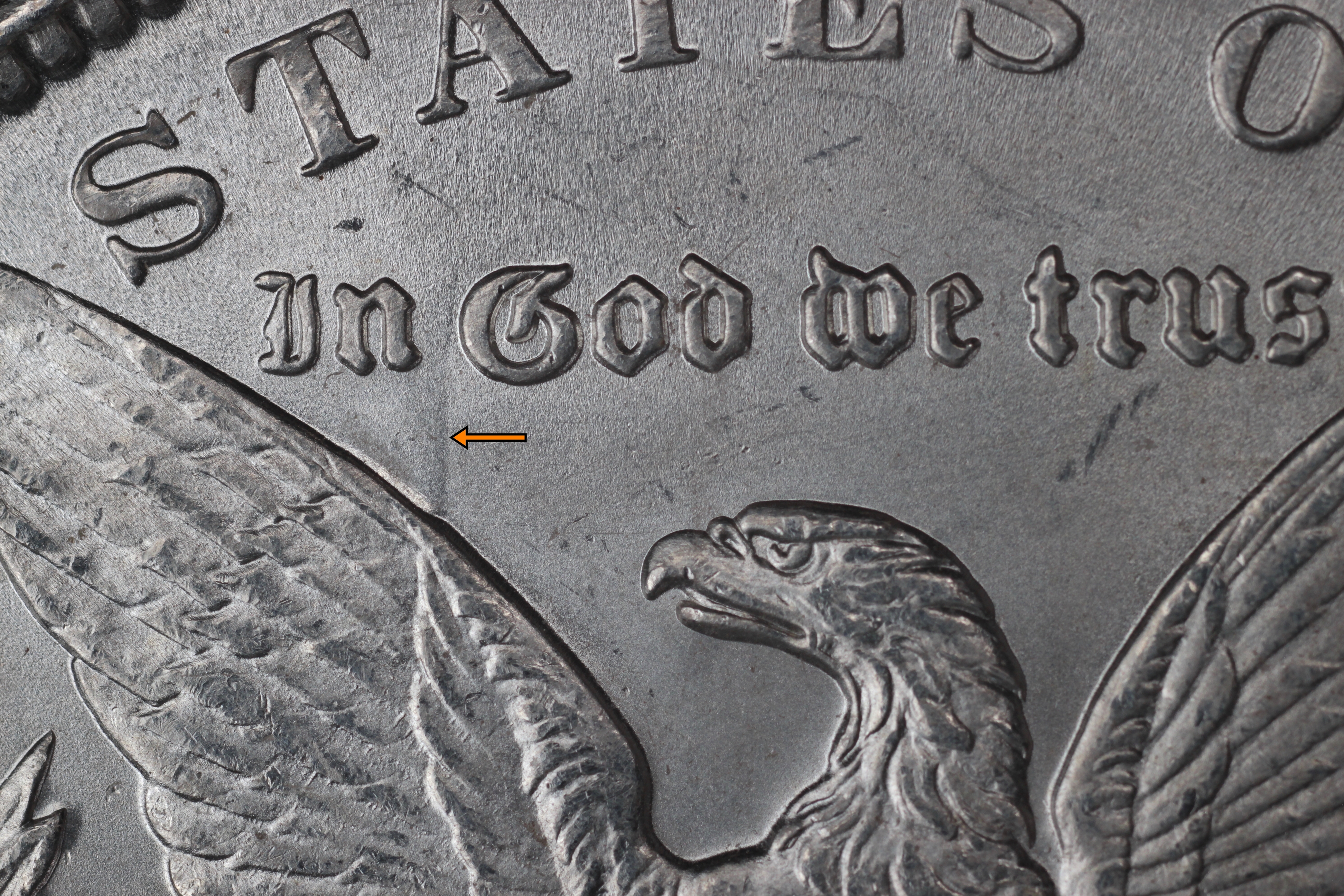

  • Double clash marks of the top of the eagle's right wing below the n of In. Faint incuse n of In from reverse showing faintly next to Liberty's neck at the lower clash line.
  • Weak die crack at LS5-LS7 and E.
  • Fine polish lines in the upper and lower tail feathers.

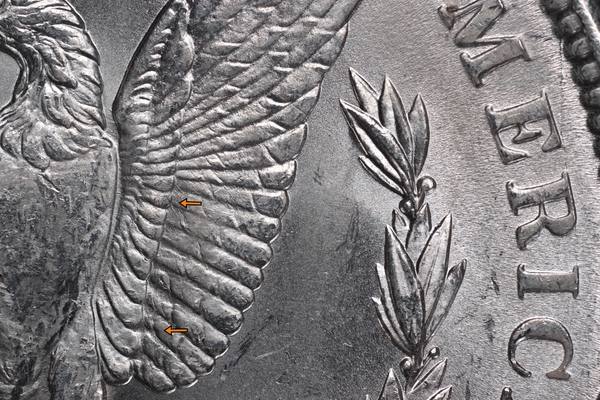

  • Distinct gouge lines at the center of the eagle's left/right wing and at the bottom of the left wing.
  • Diagonal polish lines in the eagle's wing-neck gap.

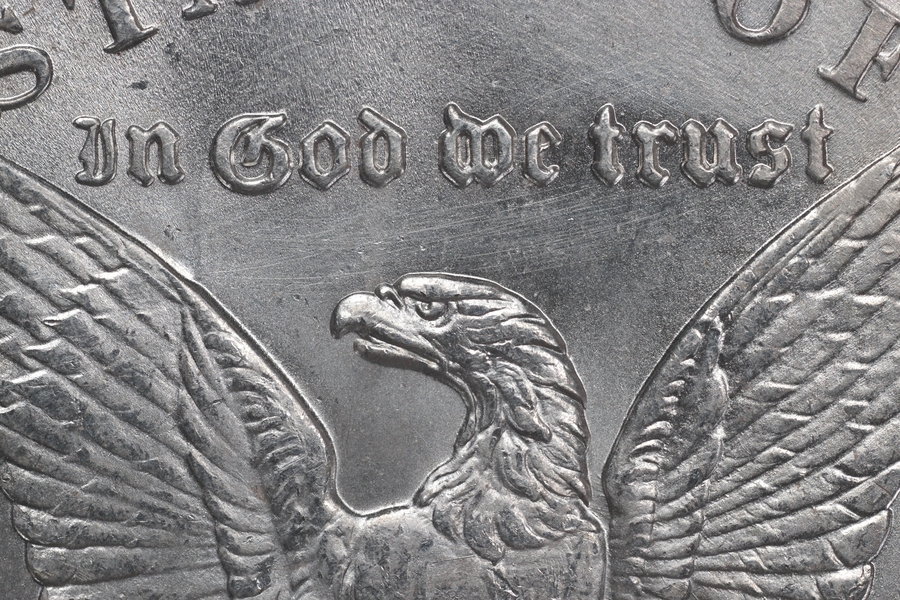

  • Weak die clash marks on reverse between the In and G.
  • Weak double clash of the obverse cap vee at the left side of RW1.
  • Weak clash of Liberty's chin and lips at the right side of LW1.
  • Weak die crack at NIT and ED.
  • Weak die crack above STATES OF.
  • Die crack from the denticles thru the top of ERIC.
Comments: Wire brushing damage on reverse at STATES OF AMERICA, in field above/below In God we trust and at the left wing tip.
VAM-7B split into VAM-7B1 and 7B2 per LVA Letter dated 22 May 2021. Collar clash at 9 O'clock makes the 7B2.
Also see the LVA Article on the 1889-P VAM-5G, VAM-23A, VAM-23B, VAM-7A, VAM-7B1 and VAM-7B2 Morgan Dollar Page 1 2 3 4
VAMWorld: [ VAM-7 ] [ VAM-7A ] [ VAM-7B ] [ VAM-7B1 ] [ VAM-7B2 ] [ 1889-P VAM List ] [ LVA 2020 Revision Letter ]
arrowbdown Bottom


Click on a photograph to enlarge. Then click on an area of interest for maximum detail. Click "back" to return.

Full Coin

1889-P VAM-7B2 Die Sequence 4A AW092920

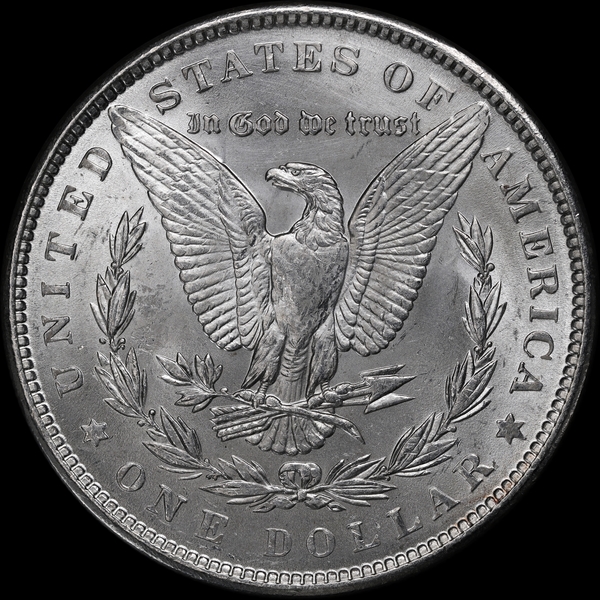

1889P AW092920 Obv LFCP.jpg 1889P AW092920 Rev LFCP.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom


Click on a photograph to enter gallery format. Click the file name link at bottom left of the gallery display to enlarge photograph. Click on an area of interest for maximum detail. Click "back" to return.

Regional Landscape

aw 092920a.jpg aw 092920b.jpg
Comment. Comment.
aw 092920c.jpg aw 092920d.jpg
Comment. Comment.
aw 092920e.jpg aw 092920f.jpg
Comment. Comment.
aw 092920g.jpg aw 092920h.jpg
Comment. Comment.
aw 092920i.jpg aw 092920j.jpg
Comment. Comment.
aw 092920k.jpg aw 092920l.jpg
Comment. Comment.
aw 092920m.jpg aw 092920n.jpg
Comment. Comment.
aw 092920o.jpg aw 092920p.jpg
Comment. Comment.
aw 092920q.jpg aw 092920r.jpg
Comment. Comment.
aw 092920s.jpg
Comment. Not Used.
aw_092920a aw_092920b aw_092920c aw_092920d aw_092920e aw_092920f aw_092920g aw_092920h aw_092920i aw_092920j aw_092920k aw_092920l aw_092920m aw_092920n aw_092920o aw_092920p aw_092920q aw_092920r aw_092920s
