Characteristics are described with a degree of granularity intended for die identification more so than for die classification. A characteristic may not span the entire die progression. Thus, not all characteristics may be present in any one coin.

1889-P VAM-7B2 Die Sequence 5 I2R6 AW110520

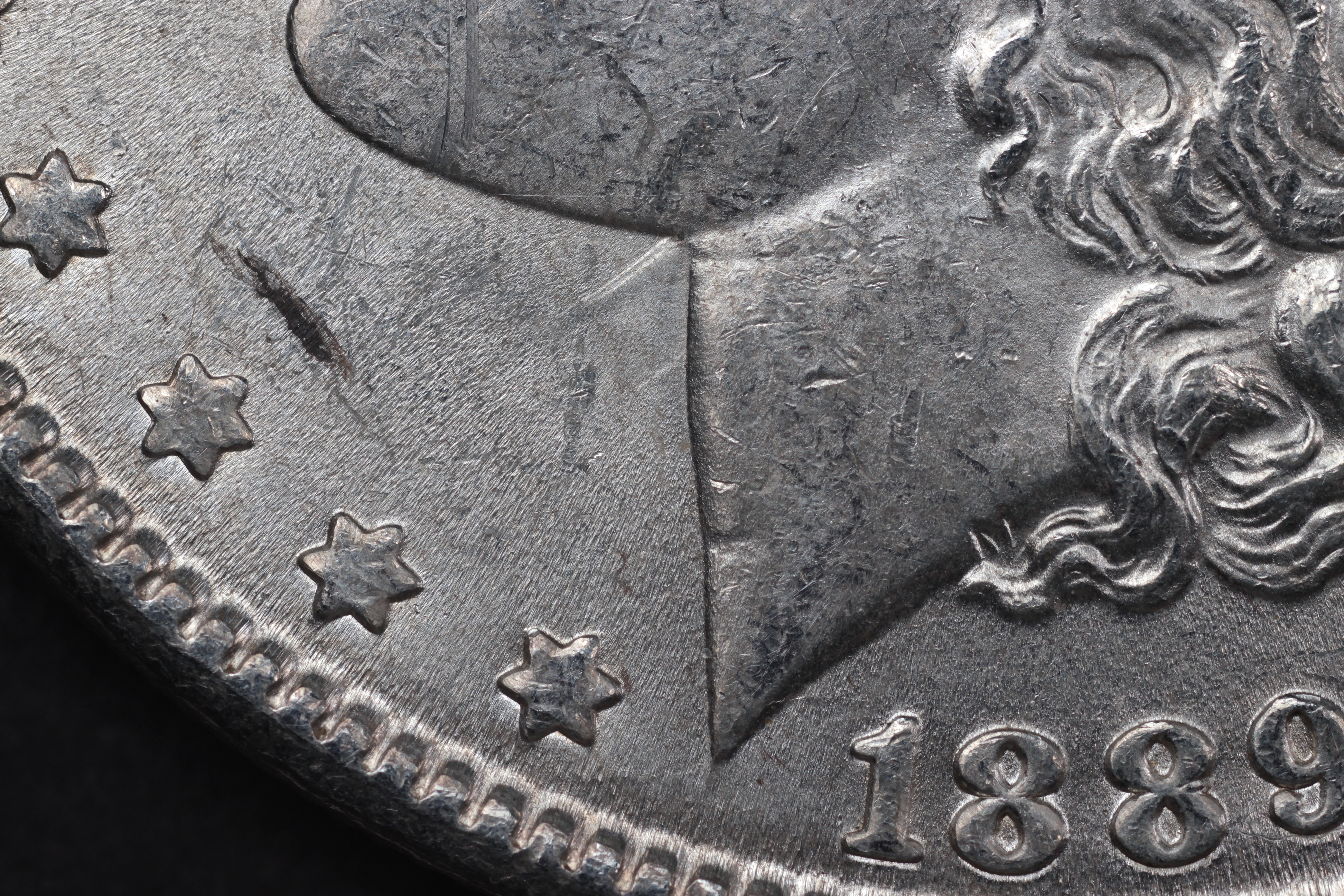

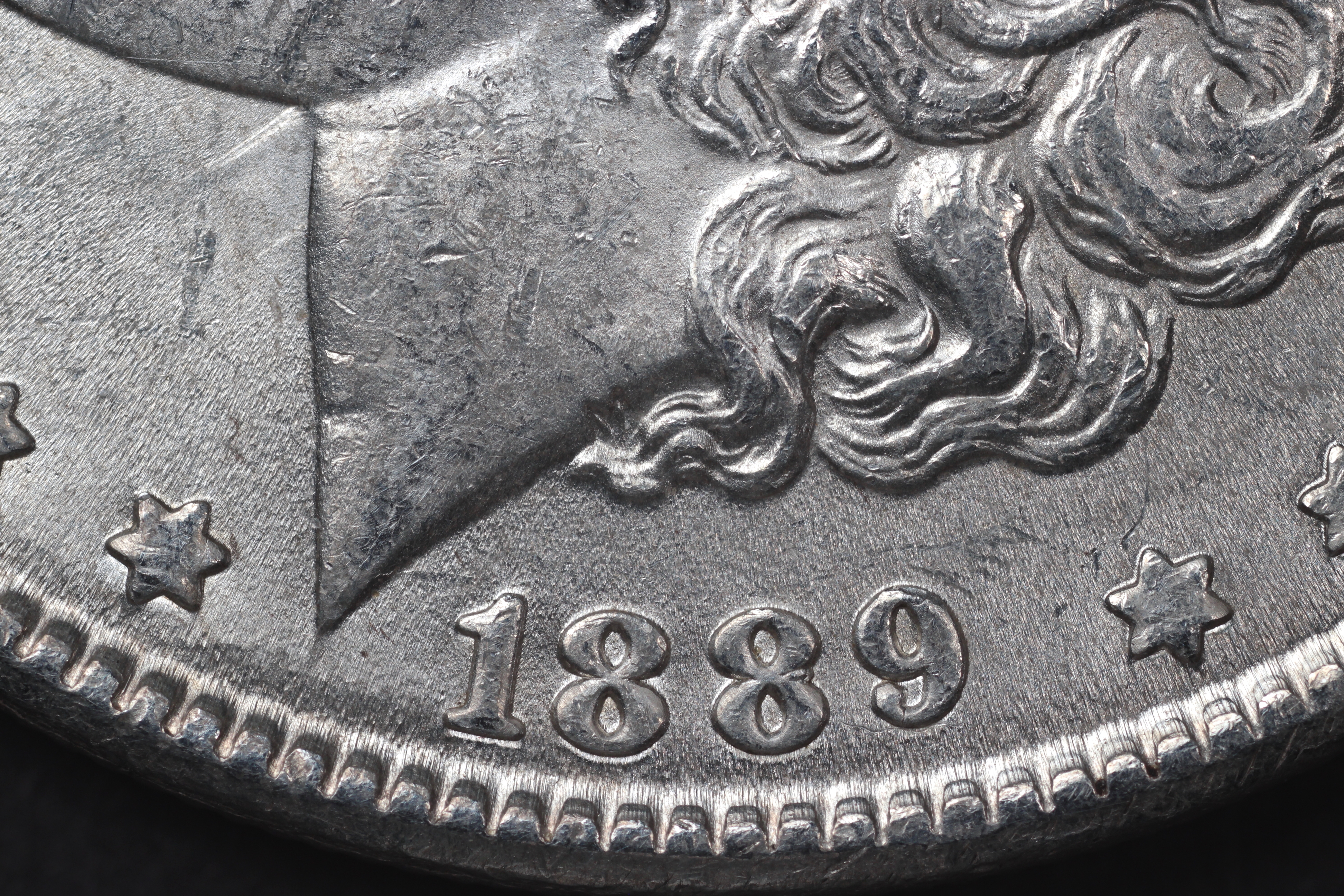

  • Date set in Normal right position. Slanted with high 9. Die break at the right side of second 8 between the loops.
  • Weak crack from the left side of the 1 into the bust point.

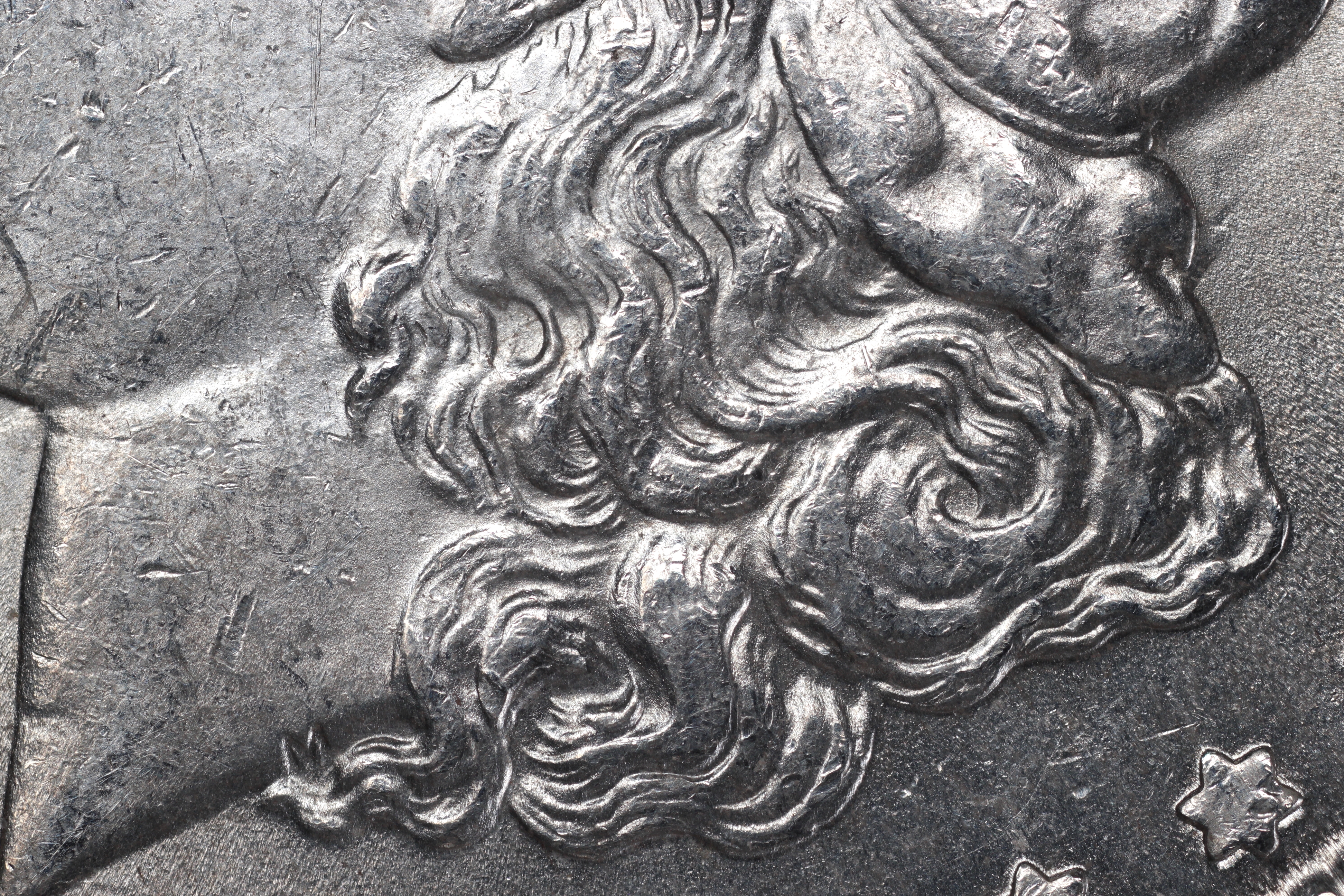

  • Distinct polish lines below the D-void in the hair and at the bottom of the cap above the small bear claw hair swirl.
  • Weak right wreath double clash marks at the cap vee.

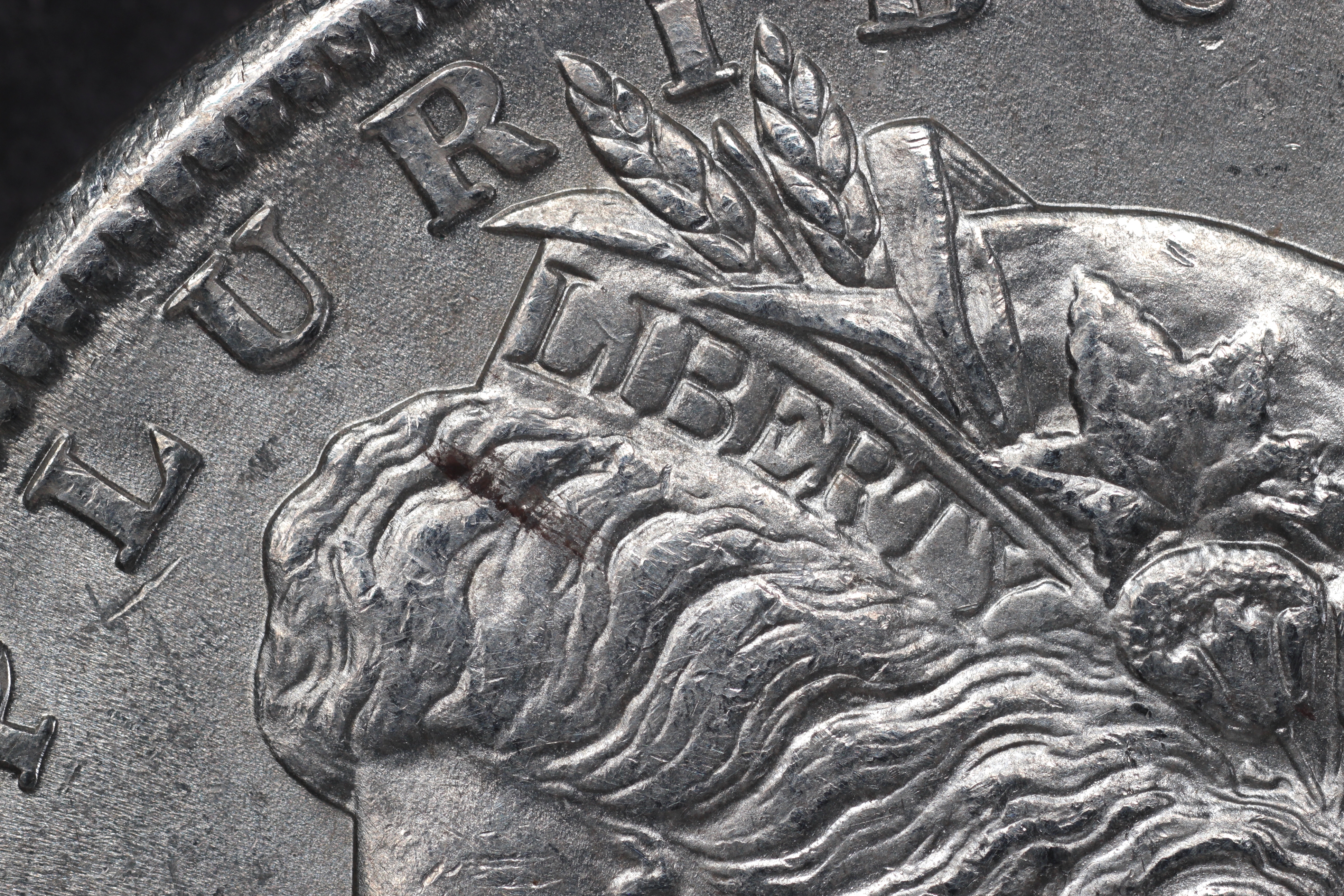

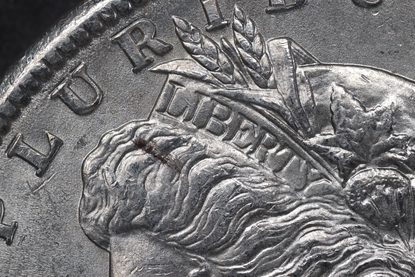

  • Die marker- Single raised dot in the right leg of the R of LIBERTY.
  • Die Marker- Die polishing lines below cap bottom edge.

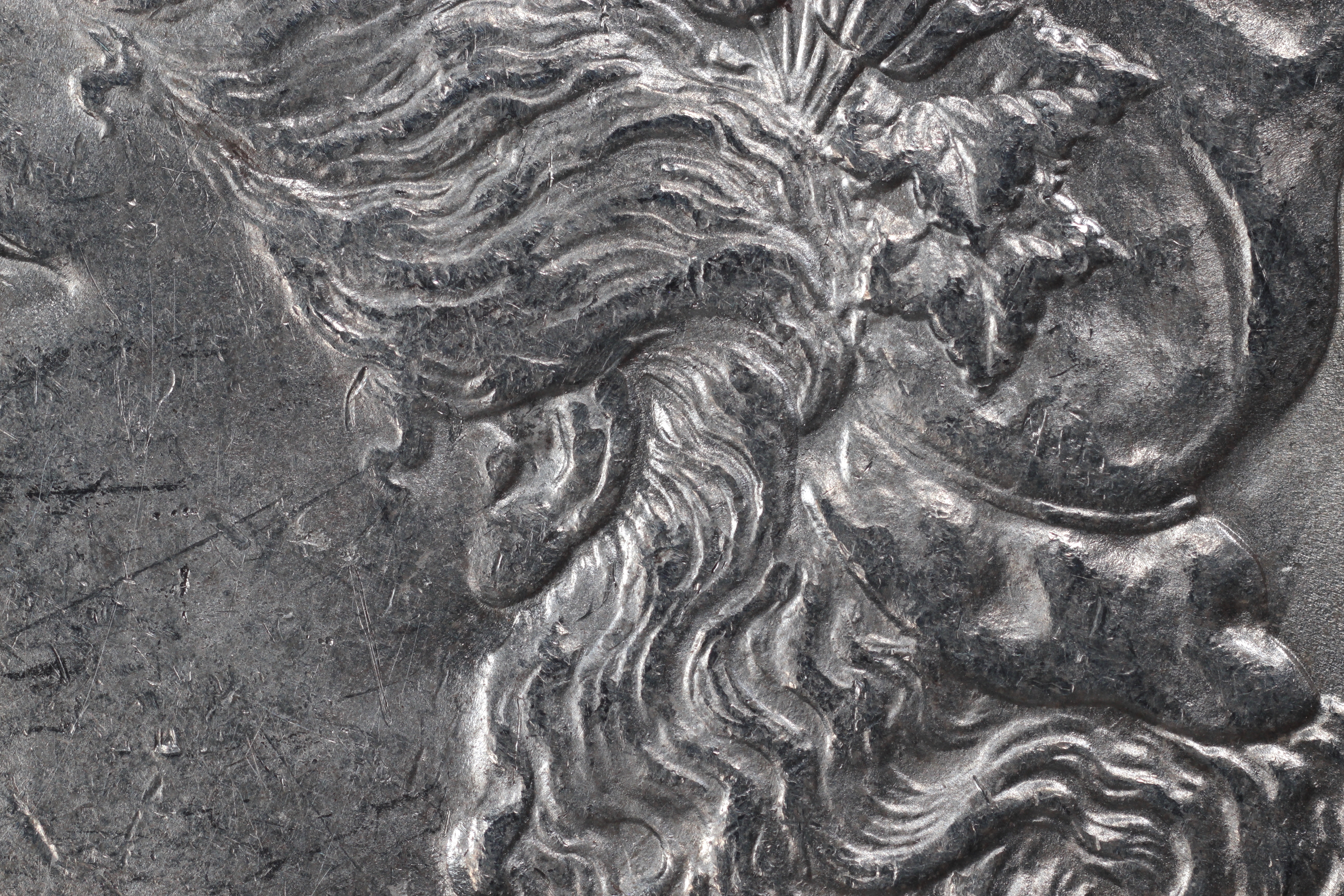

  • Ear slightly doubled at the rear of the ear opening.

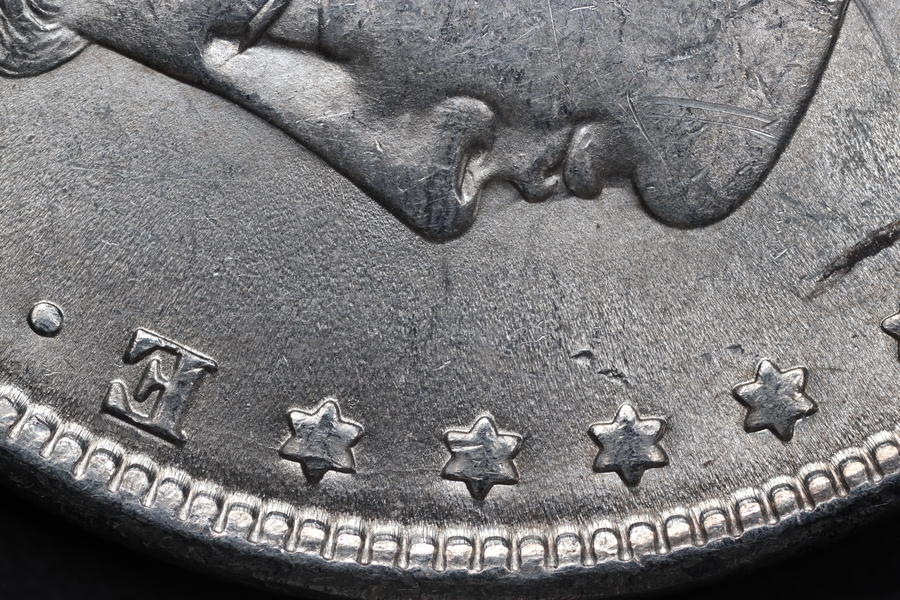

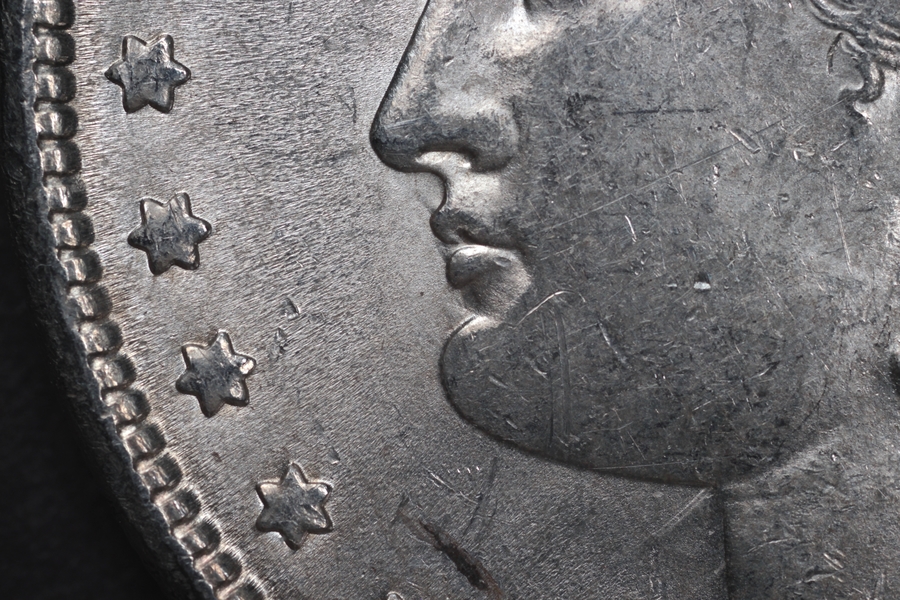

  • Left wreath clash marks at Liberty's lips and chin.
  • Double clash marks of the top of the eagle's right wing below the n of In.
  • Weak die crack at LS5-LS7 and E.

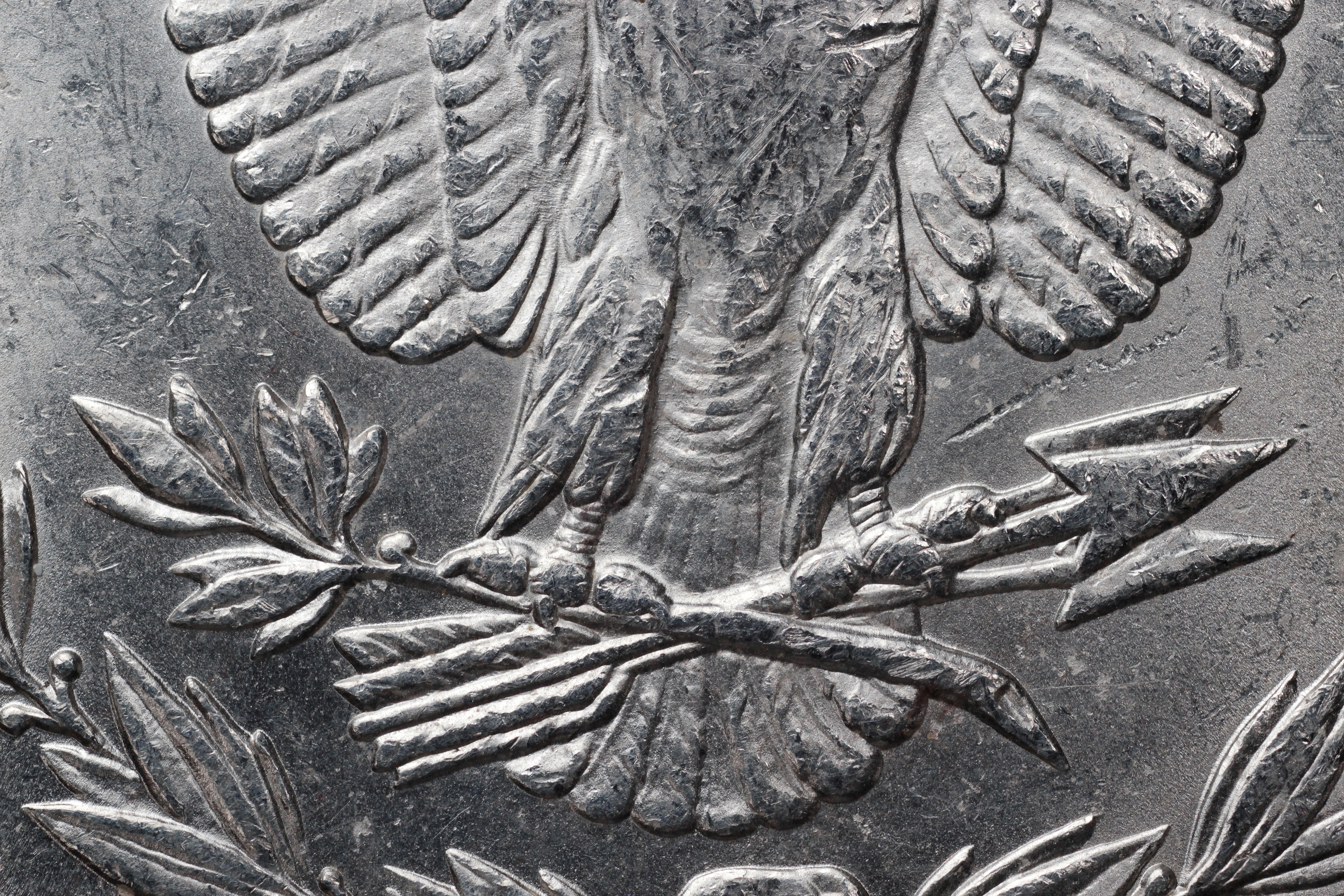

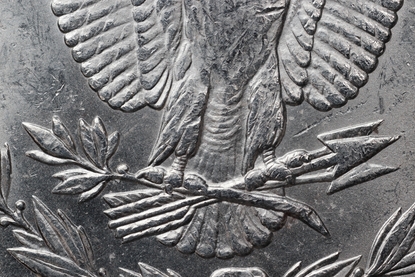

  • Fine polish lines in the upper and lower tail feathers.

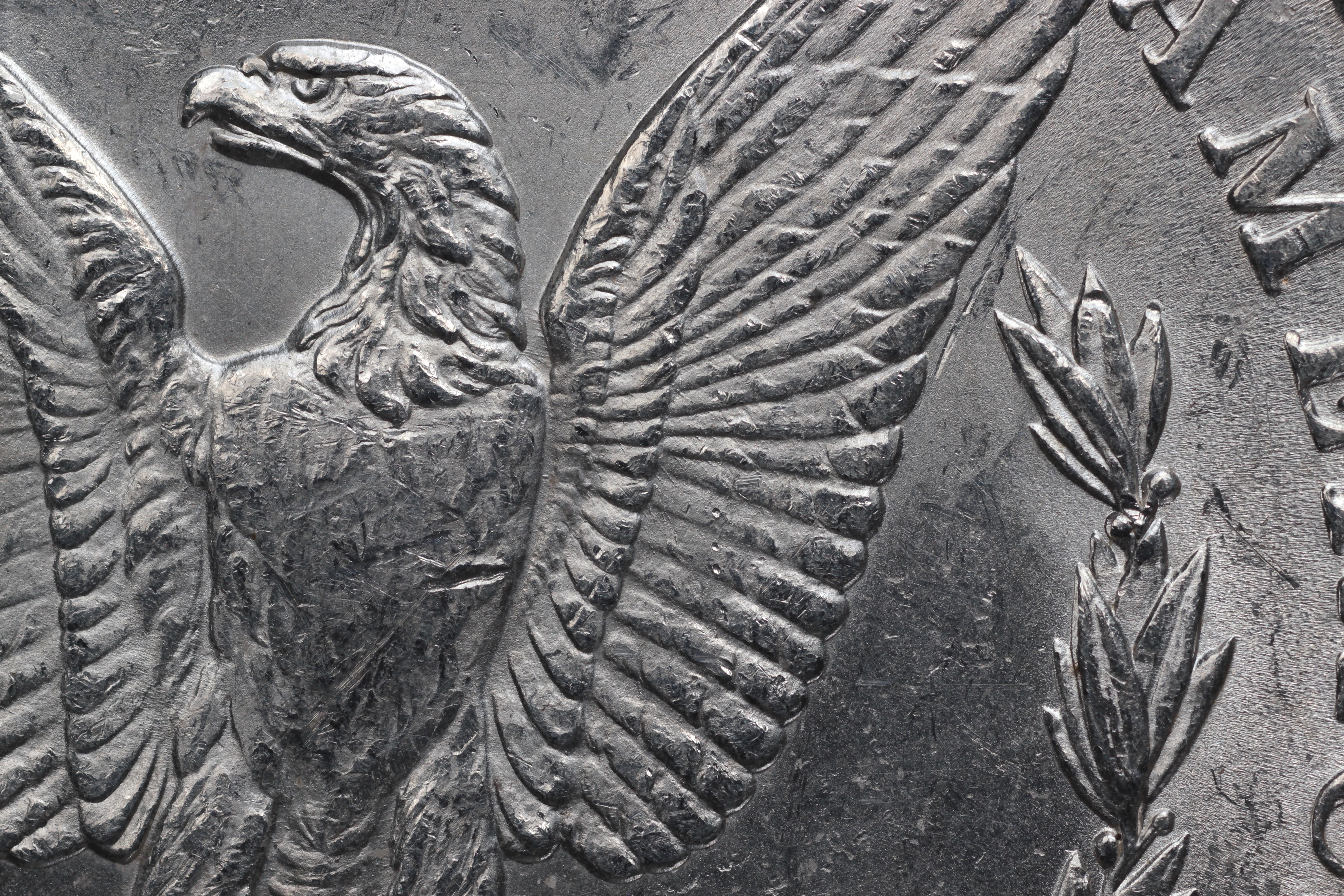

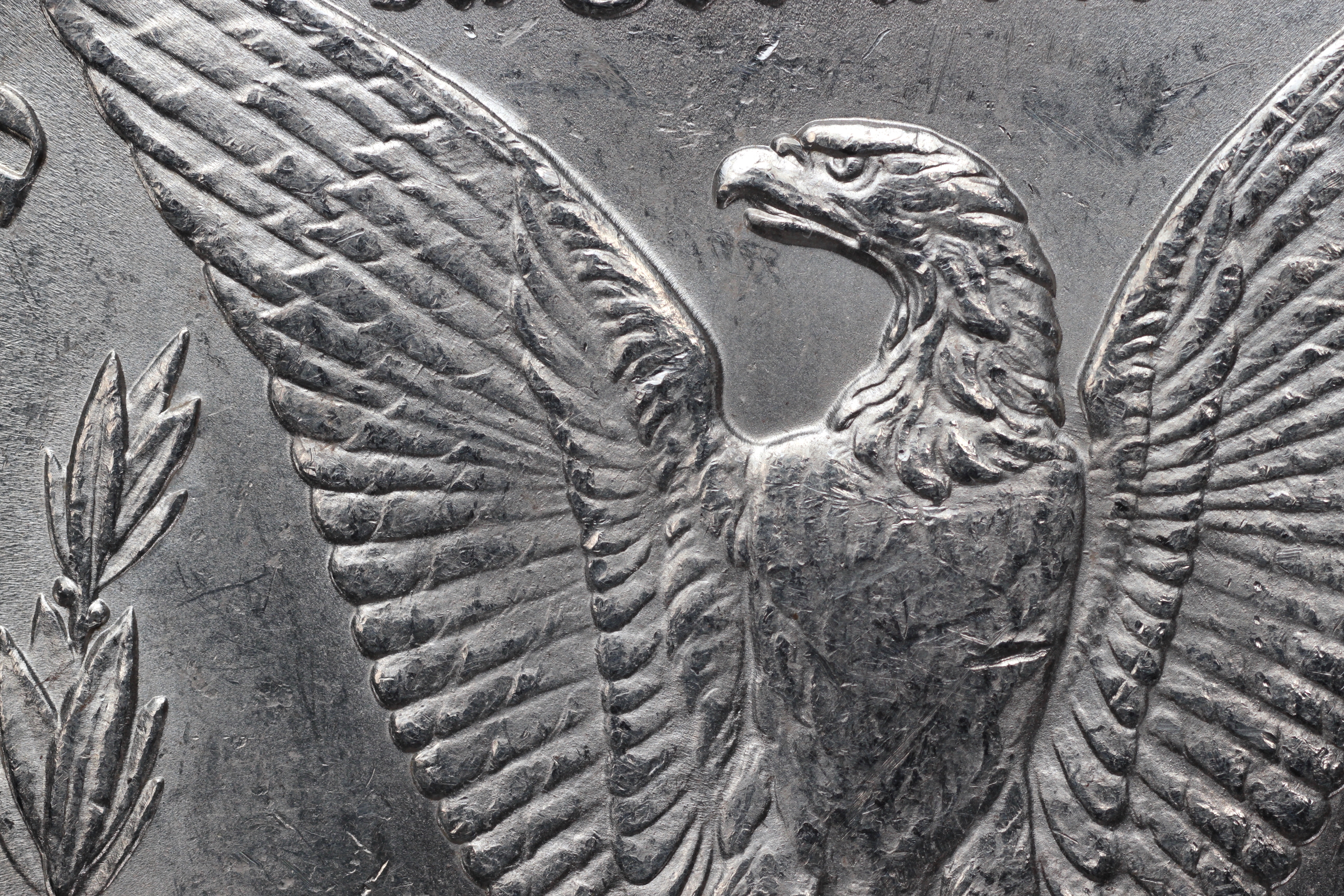

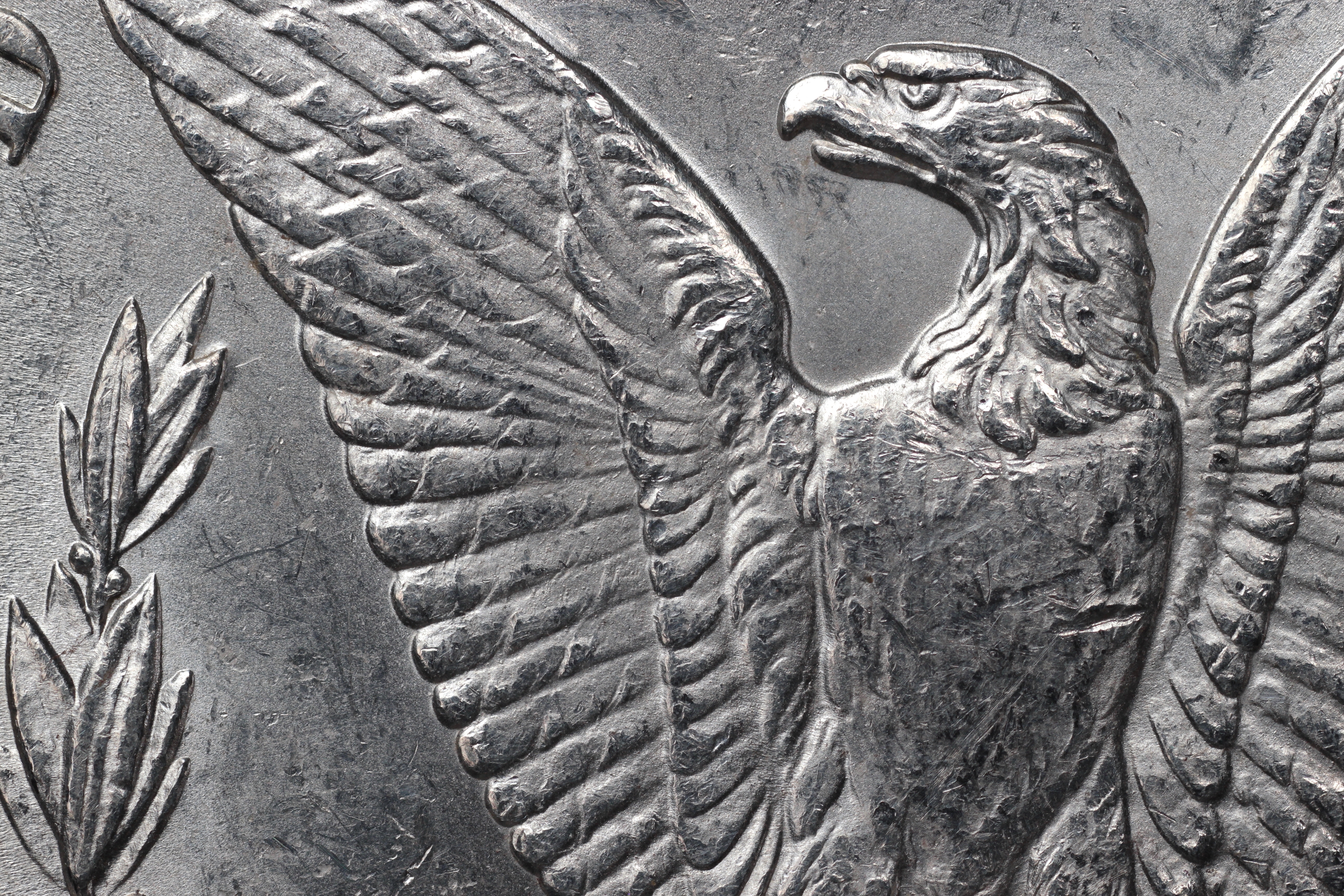

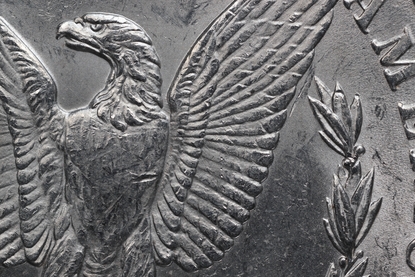

  • Distinct gouge lines at the center of the eagle's left/right wing and at the bottom of the left wing.

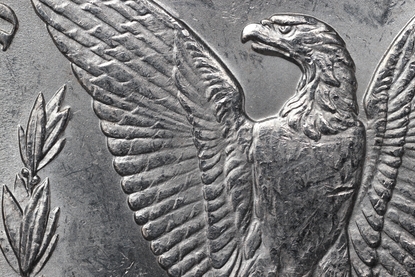

  • Diagonal polish lines in the eagle's wing-neck gap.

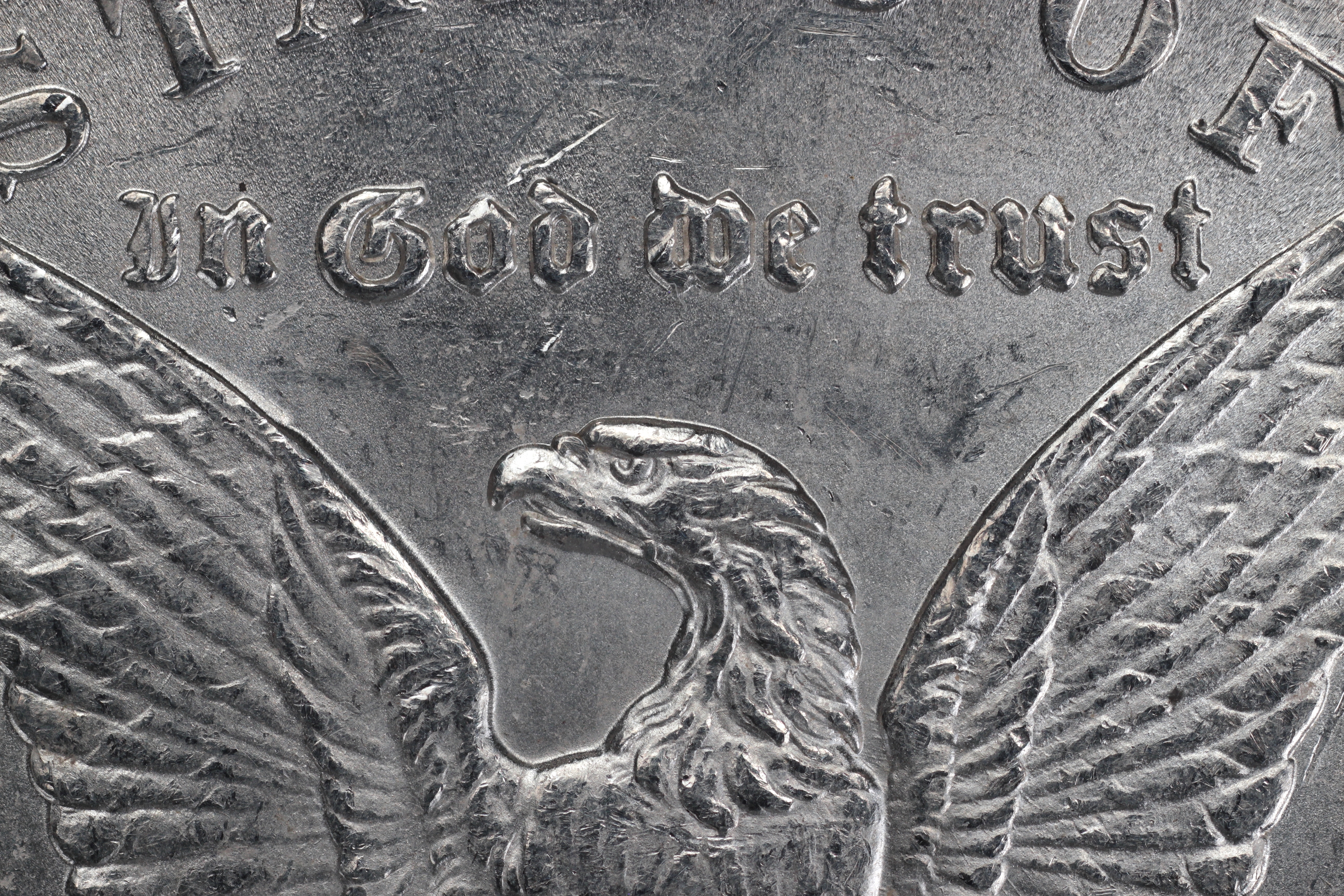

  • Weak die clash marks on reverse between the In and G.
  • Weak double clash of the obverse cap vee at the left side of RW1.
  • Weak clash of Liberty's chin and lips at the right side of LW1.

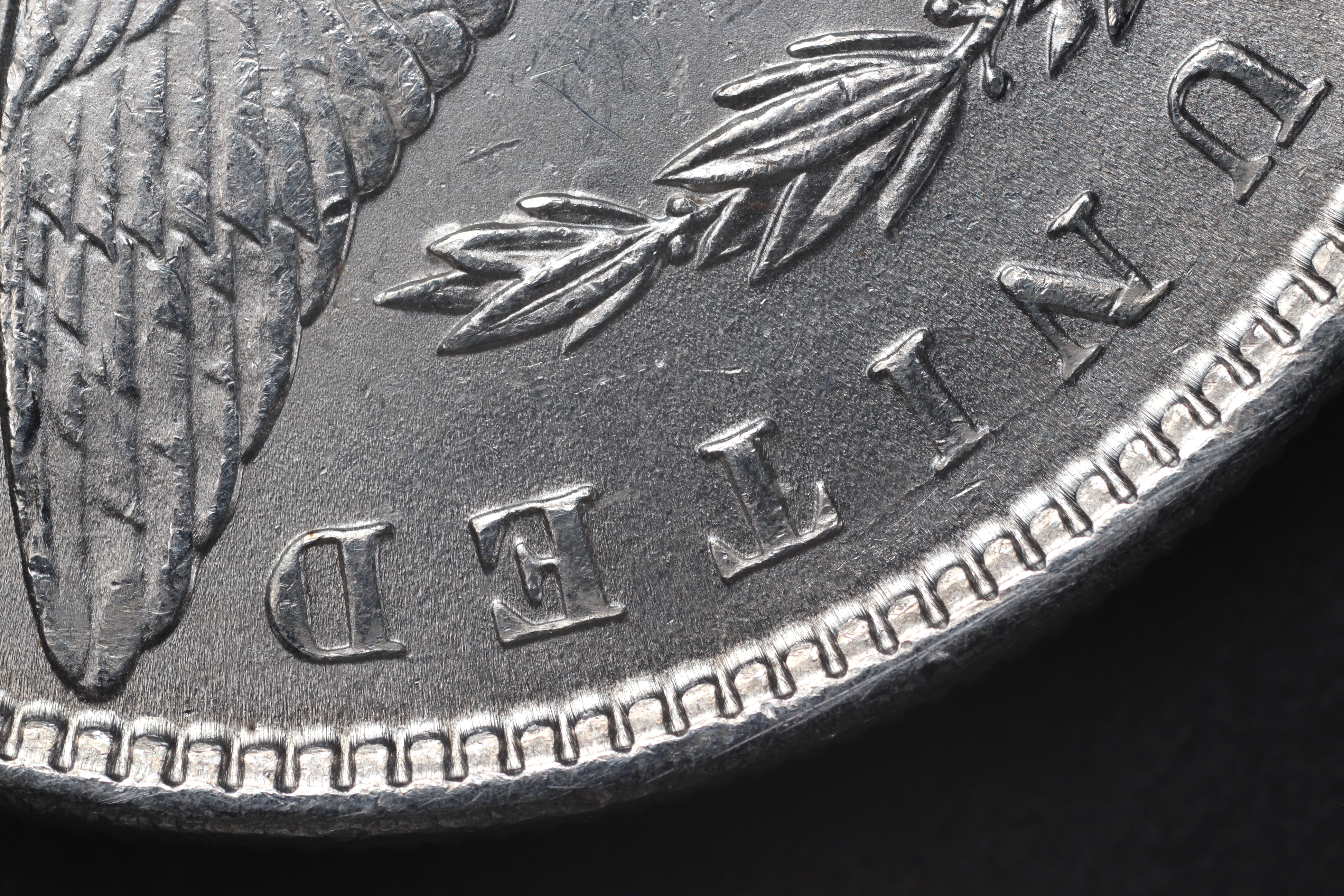

  • Weak die crack at NIT and ED.

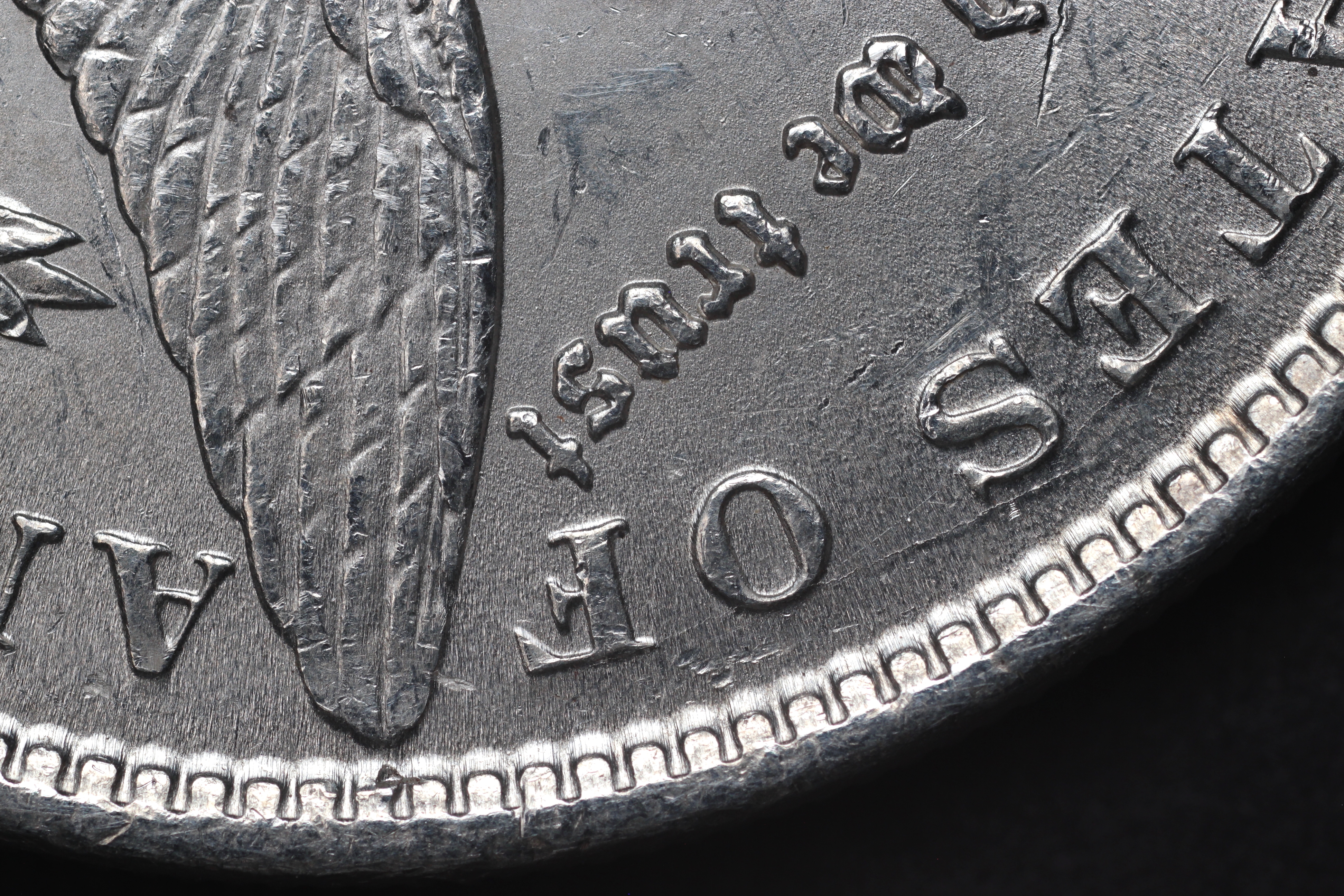

  • Weak die crack above STATES OF.

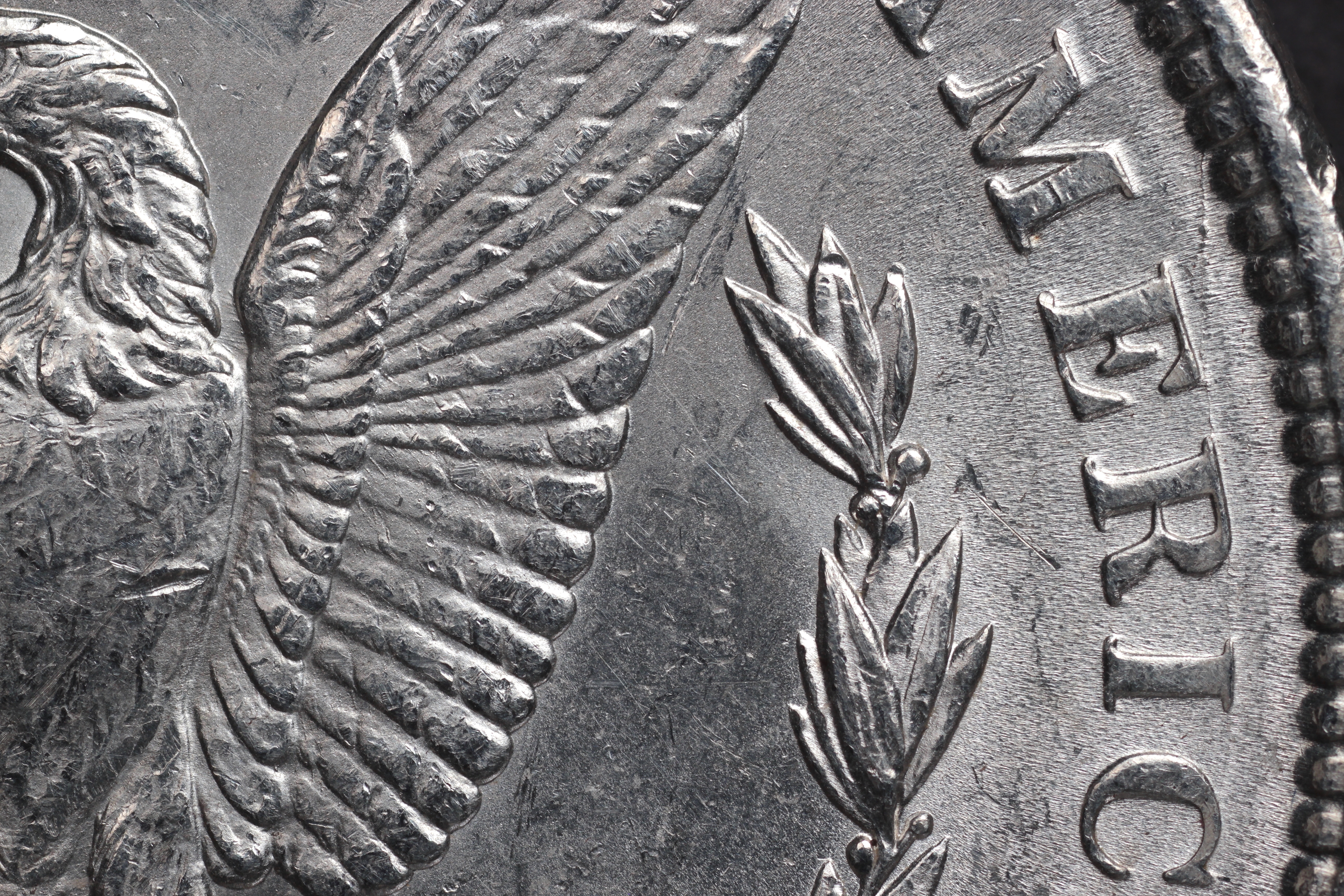

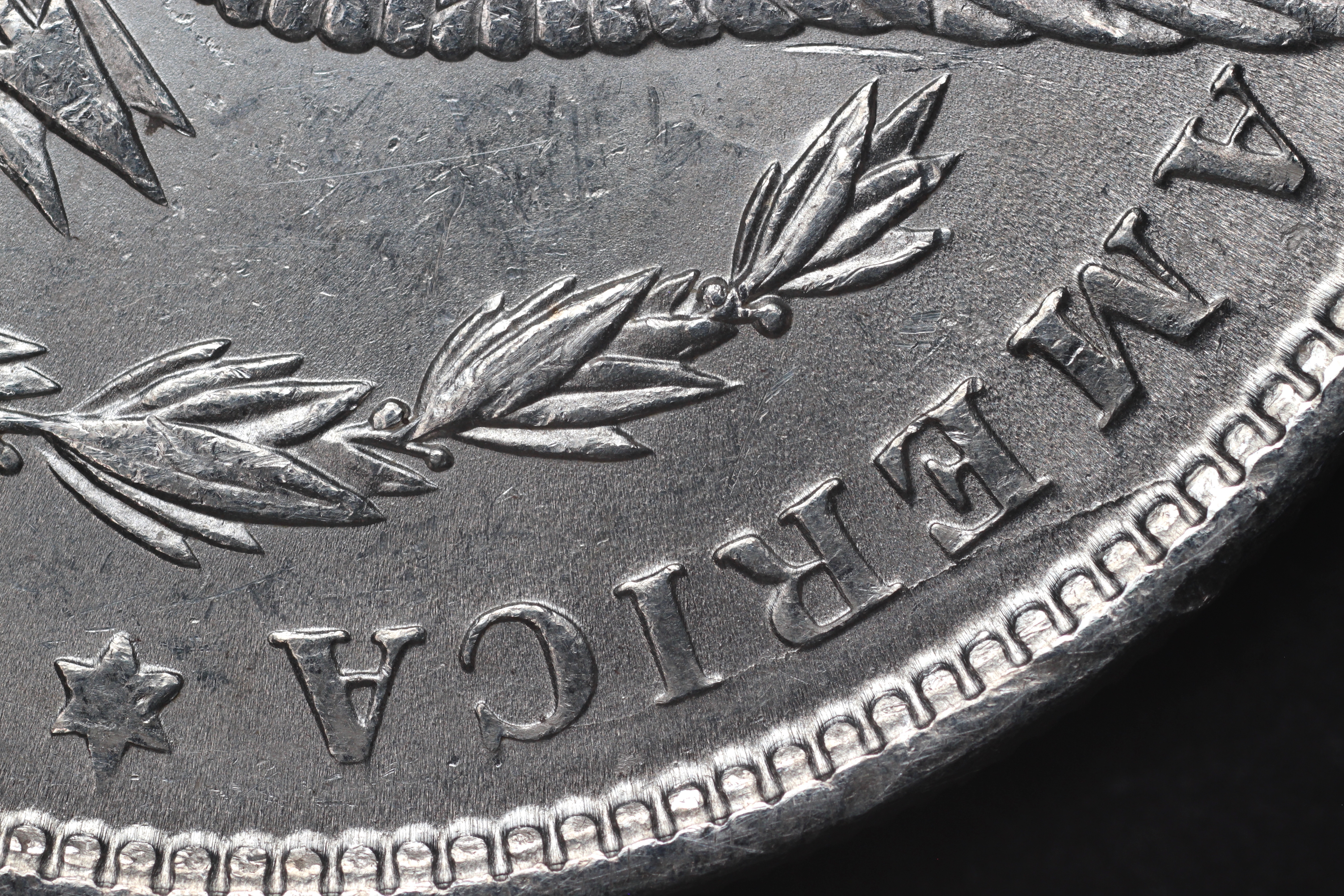

  • Die crack from the denticles thru the top of ERIC.
Comments: VAM-7B split into VAM-7B1 and 7B2 per LVA Letter dated 22 May 2021. Collar clash at 9 O'clock makes the 7B2.
Also see the LVA Article on the 1889-P VAM-5G, VAM-23A, VAM-23B, VAM-7A, VAM-7B1 and VAM-7B2 Morgan Dollar Page 1 2 3 4
VAMWorld: [ VAM-7 ] [ VAM-7A ] [ VAM-7B ] [ VAM-7B1 ] [ VAM-7B2 ] [ 1889-P VAM List ] [ LVA 2020 Revision Letter ]
arrowbdown Bottom


Click on a photograph to enlarge. Then click on an area of interest for maximum detail. Click "back" to return.

Full Coin

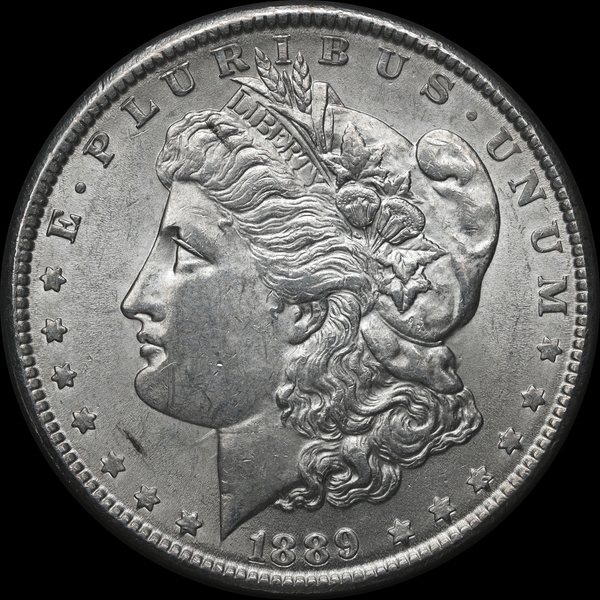

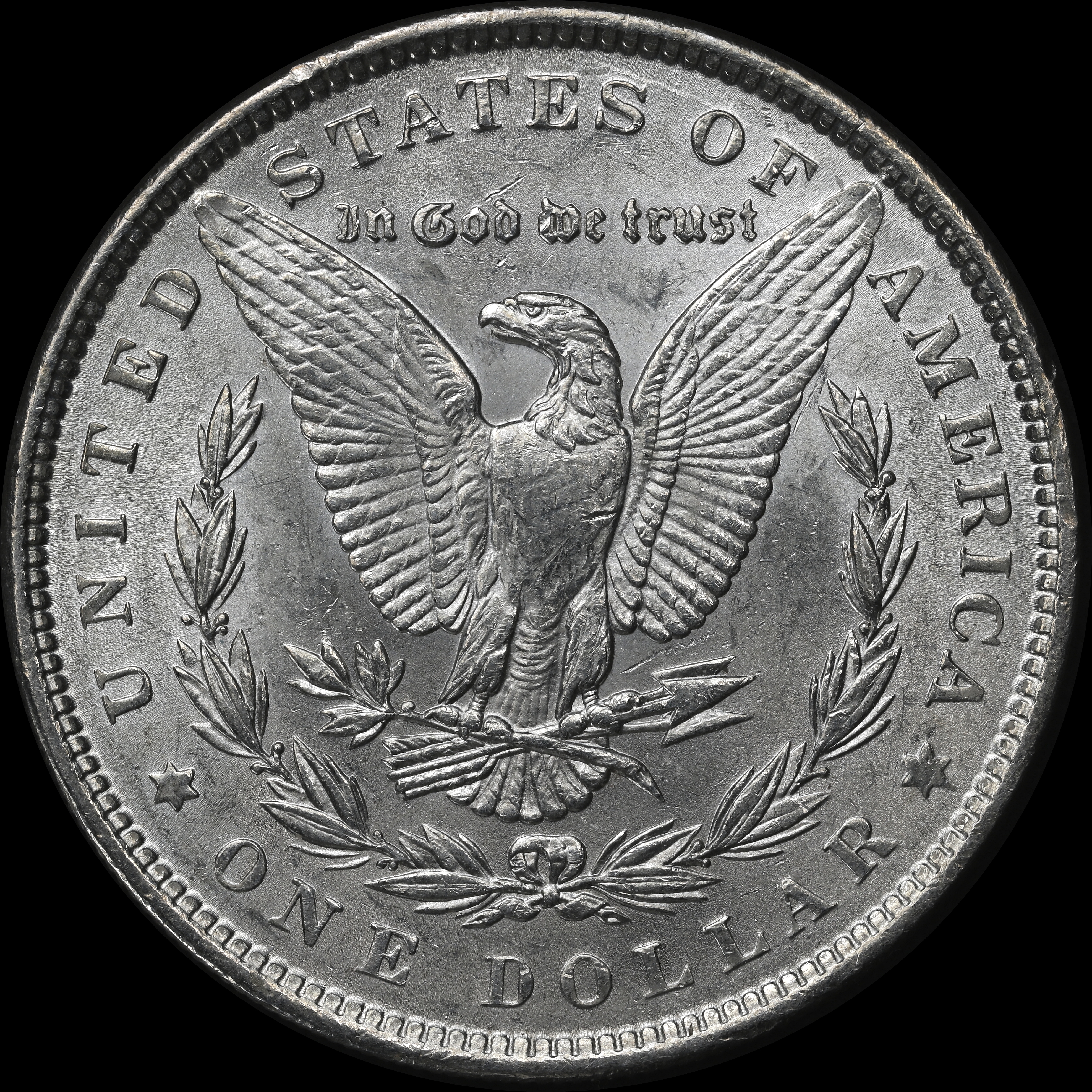

1889-P VAM-7B2 Die Sequence 5 AW110520
1889P AW110520 Obv LFCP.jpg 1889P AW110520 Rev LFCP.jpg
Comment. Comment.
arrowbup Top arrowbdown Bottom


Click on a photograph to enter gallery format. Click the file name link at bottom left of the gallery display to enlarge photograph. Click on an area of interest for maximum detail. Click "back" to return.

Regional Landscape

aw 110520a.jpg aw 110520b.jpg
Comment. Comment.
aw 110520c.jpg aw 110520d.jpg
Comment. Comment.
aw 110520e.jpg aw 110520f.jpg
Comment. Comment.
aw 110520g.jpg aw 110520h.jpg
Comment. Comment.
aw 110520i.jpg aw 110520j.jpg
Comment. Comment.
aw 110520k.jpg aw 110520l.jpg
Comment. Comment.
aw 110520m.jpg aw 110520n.jpg
Comment. Comment.
aw 110520o.jpg aw 110520p.jpg
Comment. Comment.
| aw 110520q.jpg | aw 110520r.jpg
Comment. Comment.
aw_110520a aw_110520b aw_110520c aw_110520d aw_110520e aw_110520f aw_110520g aw_110520h aw_110520i aw_110520j aw_110520k aw_110520l aw_110520m aw_110520n aw_110520o aw_110520p aw_110520q aw_110520r
